Petrophysical Interpretation Report — 15-135-26214-00-00
| Well (UWI) | 15-135-26214-00-00 |
| Log date | 11/5/2023 |
| Service company | Midwest Wireline Services |
| Acquisition date (header) | 11/5/2023 |
| PLSS location | Sec 1 T20S R22W (map precision ±1.6 km) |
| Larionov variant | old_rocks (degraded) |
| Convergence status | DID_NOT_CONVERGE |
| Confidence tier | ○ BRACKETED |
| Engine versions | calc_vsh 0.1.0 · calc_phie 0.1.0 · calc_sw 0.1.0 · formula_registry 0.1.0 |
| Config hash (SHA-256) | 2a9cb78728e386ab… |
| Git SHA | bd23bea18153 |
| Generated | autonomously, no human in the per-report loop |
Confidence legend. Each result is tagged by parameter provenance: ● FIRM (core-calibrated) · ◐ QUALIFIED (offset-derived) · ○ BRACKETED (regional/global default — read as a range, dominant uncertainty stated). The system does not claim *always correct*; it states how well-supported each number is.
1. Executive summary
⚠️ ABSTENTION — this is NOT a confident estimate. The run did not converge to a defensible result; the numbers below are an uncalibrated engineering estimate, reported for transparency only:
- 1 unresolved MECHANICAL objection(s)
The evaluation is restricted to the consolidated section between 900.0 m and 1367.0 m — the interval above it is not evaluated (unconsolidated, washed-out response). Within that interval the net pay is 29.0 m with average effective porosity 0.170 and average water saturation 0.353. Monte-Carlo places the P50 net pay at 20.6 m within a P10-P90 range of 7.5 to 46.9 m. An independent SP-derived water resistivity of 0.0491 ohm-m (static SP -46.9 mV; offset-median mud-filtrate resistivity 0.110 ohm-m — a declared cross-well assumption) supports the regional default, and the Monte-Carlo Rw range is narrowed to the field SP band with recorded provenance. The Rxo/Rt movable-hydrocarbon index reads a median of 0.705 over 2981 samples — an invasion-based indicator profile, not a saturation. The run ABSTAINS from a confident estimate: the validators keep an unresolved objection, so the result must be read as a bracketed range, not a point value.
Net pay P10 / P50 / P90 = 7.5 / 20.6 / 46.9 m.
Net pay is dominated by 'm', which is a regional DEFAULT (uncalibrated). This is the single largest uncertainty — the result is bracketed, not a confident point estimate.
2. Data inventory (from LAS)
- Curves present (canonical ← raw): DCAL←DCAL, DRHO←RHOC, GR←GR, NPHI←CNLS, NPHI_DOL←CNDL, NPHI_SS←CNSS, PEF←PE, PHID_SVC←DPOR, RHOB←RHOB, RMED←RILM, RT←RILD, RXO←RLL3, SP←SP
- Logged interval: 89.92–1367.03 m
- Log date: 11/5/2023
- Service company: Midwest Wireline Services · Company: Schaben Oil LLC
- Field: Schaben
- Not provided by LAS (out of scope): core, mud logs, pressure tests, production, completion, formation tops.
3. LAS quality control
| Edit type | Curve | Detail |
|---|---|---|
| unit_conversion | NPHI | factor 0.01 |
| hard_range_mask | PHID_SVC | count 1 |
| hard_range_mask | RT | count 318 |
| hard_range_mask | RMED | count 129 |
| range_warn | GR | count 10 |
| range_warn | NPHI | count 26 |
| spike_removal | — | 206 edits |
| degradation | — | 3 edits |
4. Standardization
Raw mnemonics mapped to canonical curve names:
| Canonical | Raw mnemonic |
|---|---|
| DCAL | DCAL |
| DRHO | RHOC |
| GR | GR |
| NPHI | CNLS |
| NPHI_DOL | CNDL |
| NPHI_SS | CNSS |
| PEF | PE |
| PHID_SVC | DPOR |
| RHOB | RHOB |
| RMED | RILM |
| RT | RILD |
| RXO | RLL3 |
| SP | SP |
Unit conversions: NPHI×0.01.
5. Per-curve log QC
- GR baseline: gr_p5=33.2, gr_p95=127.9
- Bad-hole: GOOD=0.512, DEGRADED=0.417, EXCLUDED=0.071
- Low-resistivity: rt_threshold=1.81, n_flagged=786, intervals=[[105.0, 105.9], [237.4, 237.4], [283.0, 284.7], [286.4, 308.0], [308.5, 347.5], [352.7, 356.0], [375.1, 375.2], [408.1, 409.3], [410.9, 411.5], [424.6, 425.3]]
6. Data preparation
Edits applied before compute (by type): degradation: 3, hard_range_mask: 3, range_warn: 2, spike_removal: 206, unit_conversion: 1.
7. Interval definition
- Logged interval: 89.92–1367.03 m
- Analysis window (analyst-restricted): 900.0–1367.0 m — gross and NTG are measured over this window
- Gross evaluated interval: 467.0 m
- Computed net-pay runs (pre-merge): 52
- Zonation is computed by depth (no formation tops in LAS).
8. Methodology
All numbers are produced by the deterministic, golden-tested engine. The LLM only selects methods/parameters and writes prose — it never computes a number. Figures are deterministic renderings of these computed numbers for the human reader; the agent reasons over the numeric EDA digest, not images (the models have no vision).
| Step | Method (frozen) | Version |
|---|---|---|
| Vsh | 2-mineral volumetric solve (matrix+clay+porosity from RHOB+NPHI) | vsh_multimineral 0.1.0 |
| PHIE | Density-neutron crossplot, shale-corrected | phie_density_neutron 0.1.0 |
| Sw | Simandoux 1963 (shaly sand) | sw_simandoux 0.1.0 |
| Net pay | Vsh/PHIE/Sw cutoffs → net sand → net reservoir → net pay | netpay 0.1.0 |
| Uncertainty | Monte Carlo P10/P50/P90 + parameter sensitivity | mc 0.1.0 |
9. Gamma-ray analysis
- Clean baseline gr_min = 20.0 API · shale gr_max = 120.0 API
- Shale index IGR = (GR − gr_min)/(gr_max − gr_min), the basis for Vsh.
- GR baseline check: gr_p5=33.2, gr_p95=127.9
10. Resistivity analysis
Low-resistivity scan: rt_threshold=1.81, n_flagged=786, intervals=[[105.0, 105.9], [237.4, 237.4], [283.0, 284.7], [286.4, 308.0], [308.5, 347.5], [352.7, 356.0], [375.1, 375.2], [408.1, 409.3], [410.9, 411.5], [424.6, 425.3]].
Invasion profile (multi-depth resistivities, 7850 samples): fraction with shallow reading above deep (Rxo/RT > 1.2, invaded/permeable indication): 0.639; reversed (< 0.8): 0.082; median Rxo/RT 1.355; median Rmed/RT 0.971. Raw-curve facts; naming moveable hydrocarbon is the analyst's judgement.
11. Density-neutron crossplot lithology
Matrix point-shares (fraction of points near each matrix line): sandstone: 0.173, limestone: 0.294, dolomite: 0.157. Engine crossplot output; naming the dominant lithology is the analyst's judgement. Comparison with core/mud log: not available (LAS-only).
Apparent matrix Umaa (from PEF): quartz: 0.053, calcite: 0.446, dolomite: 0.5 over 2042 samples.
12. Water resistivity (Rw)
- Rw = 0.0400 ohm-m · provenance: default
- Sourced by the engine (Pickett / SP / default); never authored by the LLM.
- Net-pay sensitivity to Rw: 23.0 m swing.
- Formation-temperature correction (Arps, regional-default gradient): Rw ≈ 0.0191 ohm-m at 46.2 °C (evidence only — Sw uses the calibrated Rw).
13. Figures

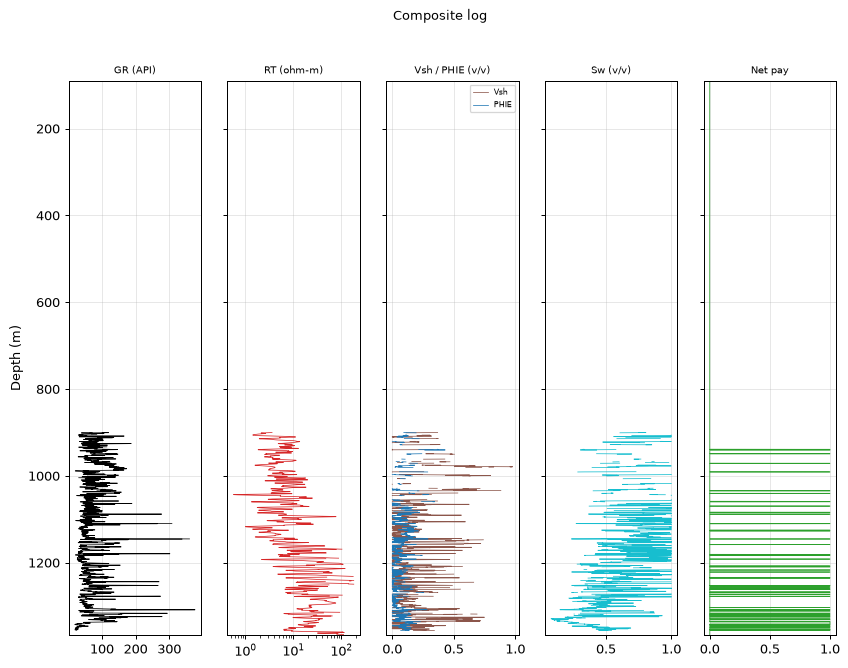

Composite log

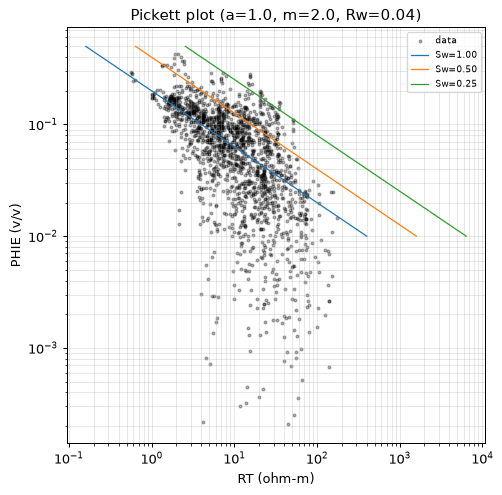

Pickett plot

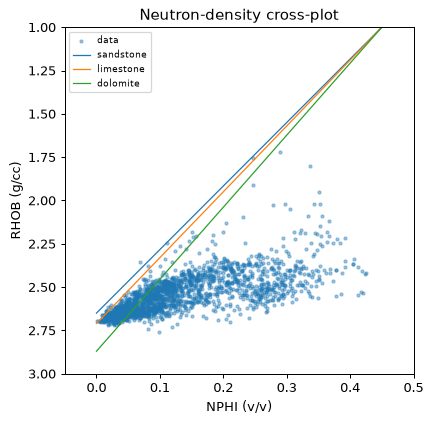

Neutron-density crossplot

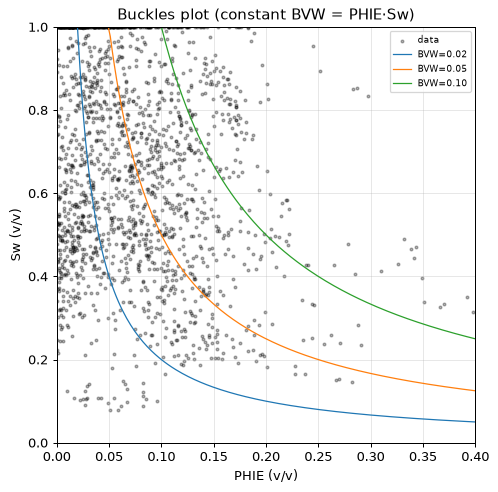

Buckles plot

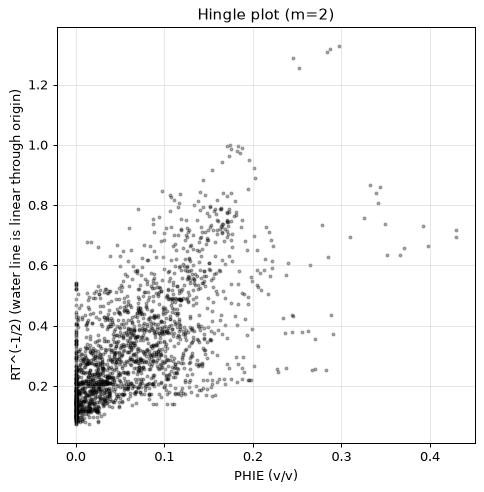

Hingle plot

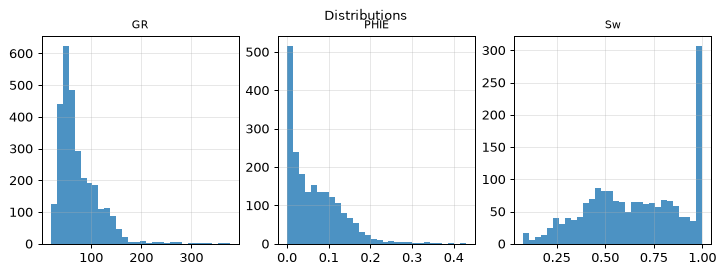

Distributions
Sensitivity tornado

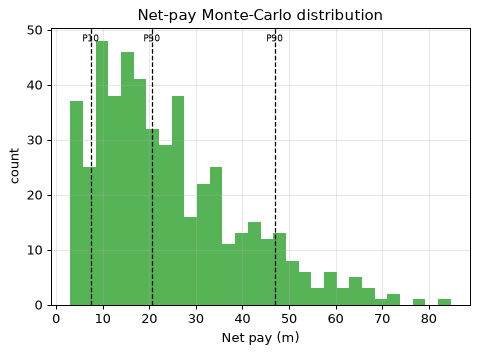

Net-pay Monte-Carlo distribution
14. Shale volume (Vsh)
Mean Vsh by method (selection is the agent's; the LLM authors no number):
| Method | Mean Vsh | Selected |
|---|---|---|
| vsh_larionov_old | 0.390 | |
| vsh_larionov_tertiary | 0.321 | |
| vsh_linear | 0.500 | |
| vsh_clavier | 0.376 | |
| vsh_steiber | 0.341 | |
| vsh_neutron_density | 0.162 | |
| vsh_multimineral | 0.160 | ✓ |
15. Porosity
Mean porosity by method (effective where shale-corrected; the LLM authors no number):
| Method | Mean porosity | Selected |
|---|---|---|
| phie_density_neutron | 0.075 | ✓ |
| phi_density | 0.094 | |
| phi_neutron | 0.127 |
Service-company porosity curves (cross-check evidence, full-column means): phid_svc: 0.231, nphi_dol: 0.144, nphi_ss: 0.246. Matrix assumptions differ per curve; agreement/disagreement is the analyst's reading.
16. Water saturation
Mean Sw (Simandoux 1963 (shaly sand)) = 0.656 (a=1.00, m=2.00, n=2.00, Rw=0.0354 ohm-m). Electrical parameters are engine-sourced; alternative Sw models are optional sections.
Mean Sw by method (engine-computed comparison; the LLM authors no number):
| Method | Mean Sw | Selected |
|---|---|---|
| sw_archie | 0.827 | |
| sw_simandoux | 0.656 | ✓ |
| sw_indonesia | 0.725 |
17. Zonation (net-pay intervals)
Raw net-pay runs merged into 42 intervals (gap tolerance 1.5 m); showing the 15 thickest, depth-ordered. Full set traces in the ledger.
| Interval | Top (m) | Base (m) | Net pay (m) | Avg PHIE | Avg Sw | Avg Vsh |
|---|---|---|---|---|---|---|
| Z1 | 938.6 | 940.6 | 1.5 | 0.363 | 0.358 | 0.019 |
| Z2 | 990.6 | 990.9 | 0.5 | 0.241 | 0.344 | 0.000 |
| Z3 | 1058.6 | 1059.6 | 1.2 | 0.314 | 0.443 | 0.055 |
| Z4 | 1087.7 | 1088.1 | 0.6 | 0.139 | 0.420 | 0.232 |
| Z5 | 1109.5 | 1110.1 | 0.8 | 0.151 | 0.343 | 0.089 |
| Z6 | 1144.8 | 1145.6 | 0.9 | 0.225 | 0.298 | 0.105 |
| Z7 | 1233.8 | 1235.4 | 0.6 | 0.123 | 0.418 | 0.167 |
| Z8 | 1252.4 | 1253.3 | 0.6 | 0.153 | 0.326 | 0.039 |
| Z9 | 1259.9 | 1261.4 | 0.8 | 0.137 | 0.364 | 0.160 |
| Z10 | 1307.9 | 1308.5 | 0.8 | 0.257 | 0.156 | 0.256 |
| Z11 | 1330.6 | 1331.4 | 0.9 | 0.136 | 0.192 | 0.093 |
| Z12 | 1335.3 | 1344.2 | 6.7 | 0.144 | 0.272 | 0.049 |
| Z13 | 1346.5 | 1347.5 | 1.2 | 0.107 | 0.409 | 0.006 |
| Z14 | 1349.5 | 1350.0 | 0.6 | 0.137 | 0.409 | 0.142 |
| Z15 | 1352.5 | 1355.6 | 2.1 | 0.125 | 0.463 | 0.222 |
18. Results
| Quantity | Value |
|---|---|
| Gross interval | 467.0 m |
| Net pay (P10/P50/P90) | 7.5 / 20.6 / 46.9 m |
| Net-to-gross | 0.062 |
| Avg PHIE (net pay) | 0.170 |
| Avg Sw (net pay) | 0.353 |
| Avg Vsh (net pay) | 0.090 |
19. Uncertainty and sensitivity
Monte Carlo, 500 realizations (seed 42). Net pay swing per parameter (one-at-a-time):
| Parameter | Net-pay swing (m) |
|---|---|
| m | 23.9 |
| Rw | 23.0 |
| a | 10.8 |
| n | 7.3 |
Dominant uncertainty: m (swing 23.9 m).
Multi-seed robustness: P50 UNSTABLE across seeds (spread 2.6 m across 4 seeds).
Net pay is dominated by 'm', which is a regional DEFAULT (uncalibrated). This is the single largest uncertainty — the result is bracketed, not a confident point estimate.
20. Derived parameters
- Bulk-volume water (BVW = PHIE*Sw): mean 0.0470 v/v
- Porosity-thickness (Phi·H over net pay): 4.921 m
- Hydrocarbon pore thickness (HCPV = Σ PHIE·(1−Sw)·step): 3.198 m
- Buckles constant (BVW at P10 of net pay): 0.0327 → Swirr (mean) ≈ 0.192 over 190 pay samples
21. Permeability (uncalibrated)
- perm_timur: mean k = 42.34 mD
_Uncalibrated screening estimate (no core); Sw used as the Swirr proxy._
22. Rock quality (uncalibrated)
- rqi: mean = 0.112
_Built on the uncalibrated permeability; indicative only._
23. Electrofacies
Unsupervised k-means on 1971 samples into 4 electrofacies (sample counts: facies 0: 340, facies 1: 707, facies 2: 245, facies 3: 679). Descriptive only — no core labels.
24. Parameters and provenance
| Parameter | Value | Unit | Provenance | Source |
|---|---|---|---|---|
| gr_min | 20.000 | API | default | — |
| gr_max | 120.000 | API | default | — |
| rho_ma | 2.710 | g/cc | default | Schlumberger 1989 |
| rho_fl | 1.000 | g/cc | default | — |
| phie_max | 0.450 | v/v | default | — |
| phi_sh_d | 0.100 | v/v | default | — |
| phi_sh_n | 0.350 | v/v | default | — |
| a | 1.000 | - | default | Winsauer et al. 1952 |
| m | 2.000 | - | default | Archie, G.E. 1942 |
| n | 2.000 | - | default | Archie, G.E. 1942 |
| Rw | 0.040 | ohm-m | default | Kansas Geological Survey 2000 |
| rt_hydrocarbon_floor | 5.000 | ohm-m | default | — |
| vsh_cutoff | 0.350 | v/v | default | — |
| phie_cutoff | 0.100 | v/v | default | — |
| sw_cutoff | 0.500 | v/v | default | — |
| bit_size_config | 7.875 | in | default | — |
| qc_abort_threshold | 0.800 | - | default | — |
| circuit_breaker_n | 3.000 | - | default | — |
The citations table (not RAG) gives each cited parameter exactly one frozen source. Parameters tagged
defaultare regional/global — they drive the bracketed tier.
25. Petrophysical cutoffs
Boundary-inclusive criteria applied by the engine (netpay) to flag reservoir:
| Stage | Criterion | Cutoff | Provenance |
|---|---|---|---|
| Net sand | Vsh ≤ cutoff | 0.350 | default |
| Net reservoir | + PHIE ≥ cutoff | 0.100 | default |
| Net pay | + Sw ≤ cutoff | 0.500 | default |
Cutoff values are engine parameters (never LLM-authored); the dominant net-pay uncertainty is m — see Uncertainty for the swing.
26. Data quality and validator objections
Curve provenance (canonical ← raw mnemonic): DCAL←DCAL, DRHO←RHOC, GR←GR, NPHI←CNLS, NPHI_DOL←CNDL, NPHI_SS←CNSS, PEF←PE, PHID_SVC←DPOR, RHOB←RHOB, RMED←RILM, RT←RILD, RXO←RLL3, SP←SP.
QC edits applied before compute — degradation: 3, hard_range_mask: 3, range_warn: 2, spike_removal: 206, unit_conversion: 1.
| Validator | Type | Detail |
|---|---|---|
| vsh_phie_anticorrelation | support | Vsh-PHIE Pearson 0.93 > 0.3 (dirty rock + high porosity) |
| rt_sw_consistency | mechanical | 9 depths with Sw<0.4 but RT<5.0 ohm-m |
27. Methodology (decision graph)
flowchart TD
dec_1["decision: step: set_zone_of_interest"]
act_1["tool_call: set_zone_of_interest"]
dec_2["decision: step: compare_methods"]
act_2["tool_call: compare_methods"]
dec_3["decision: step: compute_vsh"]
act_3["tool_call: compute_vsh"]
dec_4["decision: step: compute_phie"]
act_4["tool_call: compute_phie"]
dec_5["decision: step: compare_methods"]
act_5["tool_call: compare_methods"]
dec_6["decision: step: compute_sw"]
act_6["tool_call: compute_sw"]
dec_7["decision: step: apply_cutoffs"]
act_7["tool_call: apply_cutoffs"]
dec_8["decision: step: run_uncertainty"]
act_8["tool_call: run_uncertainty"]
dec_9["decision: step: derived_parameters"]
act_9["tool_call: derived_parameters"]
dec_10["decision: step: permeability"]
act_10["tool_call: permeability"]
dec_11["decision: step: rock_quality"]
act_11["tool_call: rock_quality"]
dec_12["decision: step: electrofacies"]
act_12["tool_call: electrofacies"]
dec_13["decision: step: lithology"]
act_13["tool_call: lithology"]28. Data gaps for calibration
This is a LAS-only study. Data that would calibrate the interpretation is absent:
- Core (routine + SCAL): would anchor PHIE and Archie m, n, a.
- Pressure tests (RFT/MDT): would give true fluid contacts and gradients (log-based).
- Production/flow data: would test the net-pay flag against deliverability.
- Dominant net-pay uncertainty driver (from the sensitivity): m (calibrated by core SCAL — cementation exponent m).
- Standard curves absent: DT, CALI.
29. Limitations
- LAS-only study: no core calibration, no pressure tests (no true fluid contacts), no production, no mud logs, no formation tops (zonation computed by depth).
- Standard curves absent in this well: DT, CALI.
- Results are uncalibrated; accuracy depends on data not provided.
30. Conclusions
THE PEF WELL. Competent from 900 m. Multimineral ~0.21 -> Simandoux. Umaa apparent-matrix (umaa_apparent) resolves mineralogy from PEF — first use in the project. Method choices were made against the engine's numeric comparisons, not by preference; the comparison tables show the rejected alternatives beside the selected method. All numbers in this report come from the deterministic engine; the analyst chose the interval, the methods and the analyses, and wrote this prose — nothing more. Remaining uncertainty is dominated by the uncalibrated regional parameters.
Appendix A — Ledger excerpt (traceability)
{
"net_pay_total_m": 28.956000000000017,
"net_pay_p10_p50_p90": [
7.452360000000005,
20.574000000000012,
46.93920000000003
],
"driving_params": {
"a": 1.0,
"m": 2.0,
"n": 2.0,
"Rw": 0.04
},
"claim_verifier": {
"result": "PASS",
"flags": [],
"tone_flags": []
}
}Appendix B — Completeness gate
| Item | Present |
|---|---|
| QC edits recorded before compute | ✓ |
| Every number ledger-traced | ✓ |
| Confidence tier on the run | ✓ |
| Parameter citations frozen | ✓ |
| Validator objections listed, not hidden | ✓ |
| Uncertainty propagated (Monte Carlo) | ✓ |
| Claim verifier run on prose | ✓ |
