Petrophysical Interpretation Report — 15-135-25990-00-00
| Well (UWI) | 15-135-25990-00-00 |
| Log date | 2/11/2018 |
| Service company | Pioneer Energy Services |
| Acquisition date (header) | 2/11/2018 |
| PLSS location | Sec 31 T19S R21W (map precision ±1.6 km) |
| Larionov variant | old_rocks (degraded) |
| Convergence status | DID_NOT_CONVERGE |
| Confidence tier | ○ BRACKETED |
| Engine versions | calc_vsh 0.1.0 · calc_phie 0.1.0 · calc_sw 0.1.0 · formula_registry 0.1.0 |
| Config hash (SHA-256) | 2a9cb78728e386ab… |
| Git SHA | 31c0f4a959a5 |
| Generated | autonomously, no human in the per-report loop |
Confidence legend. Each result is tagged by parameter provenance: ● FIRM (core-calibrated) · ◐ QUALIFIED (offset-derived) · ○ BRACKETED (regional/global default — read as a range, dominant uncertainty stated). The system does not claim *always correct*; it states how well-supported each number is.
1. Executive summary
⚠️ ABSTENTION — this is NOT a confident estimate. The run did not converge to a defensible result; the numbers below are an uncalibrated engineering estimate, reported for transparency only:
- 1 unresolved MECHANICAL objection(s)
- net-pay avg PHIE 0.36 > 0.25 — implausibly high for carbonate
⚠️ ABSTENTION — this is NOT a confident estimate. The validation loop did not converge (DID_NOT_CONVERGE) and three validator objections remain outstanding, including one unresolved MECHANICAL objection: net-pay average PHIE of 0.361 exceeds 0.25, which is implausibly high for carbonate and flags the result as an uncalibrated engineering estimate reported for transparency only.
Net pay across the 623.0 m gross evaluation window spans a P10–P90 range of 37.3 to 155.3 m (P50 109.9 m) at a net-to-gross of 0.193. Net-pay averages are PHIE 0.361, Sw 0.283, and Vsh 0.022. The dominant uncertainty is a 26.1 m swing in net pay driven by Rw, which is a regional default (uncalibrated) — the single largest uncertainty. Because Rw is bracketed and the run did not converge, the reported pay range should be treated as a scenario envelope, not a deterministic result.
Net pay P10 / P50 / P90 = 37.3 / 109.9 / 155.3 m. Net pay is dominated by 'Rw', a regional DEFAULT (uncalibrated). This is the single largest uncertainty — the result is bracketed, not a confident point estimate.
Net pay P10 / P50 / P90 = 37.3 / 109.9 / 155.3 m.
Net pay is dominated by 'Rw', which is a regional DEFAULT (uncalibrated). This is the single largest uncertainty — the result is bracketed, not a confident point estimate.
2. Data inventory (from LAS)
- Curves present (canonical ← raw): DCAL←DCAL, DRHO←RHOC, GR←GR, NPHI←CNLS, NPHI_DOL←CNDL, NPHI_SS←CNSS, PHID_SVC←DPOR, RHOB←RHOB, RMED←RILM, RT←RILD, RXO←RLL3, SP←SP
- Logged interval: 59.44–1376.17 m
- Log date: 2/11/2018
- Service company: Pioneer Energy Services · Company: SCHABEN OIL, LLC
- Field: SCHABEN
- Not provided by LAS (out of scope): core, mud logs, pressure tests, production, completion, formation tops.
3. LAS quality control
| Edit type | Curve | Detail |
|---|---|---|
| unit_conversion | NPHI | factor 0.01 |
| hard_range_mask | PHID_SVC | count 4 |
| hard_range_mask | DRHO | count 4 |
| hard_range_mask | RT | count 151 |
| hard_range_mask | RMED | count 82 |
| range_warn | RHOB | count 4 |
| range_warn | NPHI | count 15 |
| spike_removal | — | 134 edits |
| degradation | — | 2 edits |
4. Standardization
Raw mnemonics mapped to canonical curve names:
| Canonical | Raw mnemonic |
|---|---|
| DCAL | DCAL |
| DRHO | RHOC |
| GR | GR |
| NPHI | CNLS |
| NPHI_DOL | CNDL |
| NPHI_SS | CNSS |
| PHID_SVC | DPOR |
| RHOB | RHOB |
| RMED | RILM |
| RT | RILD |
| RXO | RLL3 |
| SP | SP |
Unit conversions: NPHI×0.01.
5. Per-curve log QC
- GR baseline: gr_p5=27.3, gr_p95=100.5
- Bad-hole: GOOD=0.748, DEGRADED=0.21, EXCLUDED=0.041
- Low-resistivity: rt_threshold=1.33, n_flagged=836, intervals=[[292.0, 293.7], [300.7, 356.9], [361.6, 366.4], [418.9, 419.4], [435.1, 435.3], [438.0, 439.8], [478.1, 484.6], [495.3, 496.8], [501.9, 503.1], [508.1, 512.5]]
6. Data preparation
Edits applied before compute (by type): degradation: 2, hard_range_mask: 4, range_warn: 2, spike_removal: 134, unit_conversion: 1.
7. Interval definition
- Logged interval: 59.44–1376.17 m
- Analysis window (analyst-restricted): 700.0–1323.0 m — gross and NTG are measured over this window
- Gross evaluated interval: 623.0 m
- Computed net-pay runs (pre-merge): 54
- Zonation is computed by depth (no formation tops in LAS).
8. Methodology
All numbers are produced by the deterministic, golden-tested engine. The LLM only selects methods/parameters and writes prose — it never computes a number. Figures are deterministic renderings of these computed numbers for the human reader; the agent reasons over the numeric EDA digest, not images (the models have no vision).
| Step | Method (frozen) | Version |
|---|---|---|
| Vsh | Neutron-density separation (non-GR clay indicator) | vsh_neutron_density 0.1.0 |
| PHIE | Density-neutron crossplot, shale-corrected | phie_density_neutron 0.1.0 |
| Sw | Simandoux 1963 (shaly sand) | sw_simandoux 0.1.0 |
| Net pay | Vsh/PHIE/Sw cutoffs → net sand → net reservoir → net pay | netpay 0.1.0 |
| Uncertainty | Monte Carlo P10/P50/P90 + parameter sensitivity | mc 0.1.0 |
9. Gamma-ray analysis
- Clean baseline gr_min = 20.0 API · shale gr_max = 120.0 API
- Shale index IGR = (GR − gr_min)/(gr_max − gr_min), the basis for Vsh.
- GR baseline check: gr_p5=27.3, gr_p95=100.5
10. Resistivity analysis
Low-resistivity scan: rt_threshold=1.33, n_flagged=836, intervals=[[292.0, 293.7], [300.7, 356.9], [361.6, 366.4], [418.9, 419.4], [435.1, 435.3], [438.0, 439.8], [478.1, 484.6], [495.3, 496.8], [501.9, 503.1], [508.1, 512.5]].
Invasion profile (multi-depth resistivities, 8346 samples): fraction with shallow reading above deep (Rxo/RT > 1.2, invaded/permeable indication): 0.931; reversed (< 0.8): 0.032; median Rxo/RT 2.380; median Rmed/RT 1.073. Raw-curve facts; naming moveable hydrocarbon is the analyst's judgement.
11. Density-neutron crossplot lithology
Matrix point-shares (fraction of points near each matrix line): sandstone: 0.099, limestone: 0.186, dolomite: 0.167. Engine crossplot output; naming the dominant lithology is the analyst's judgement. Comparison with core/mud log: not available (LAS-only).
12. Water resistivity (Rw)
- Rw = 0.0400 ohm-m · provenance: default
- Sourced by the engine (Pickett / SP / default); never authored by the LLM.
- Net-pay sensitivity to Rw: 26.1 m swing.
13. Figures

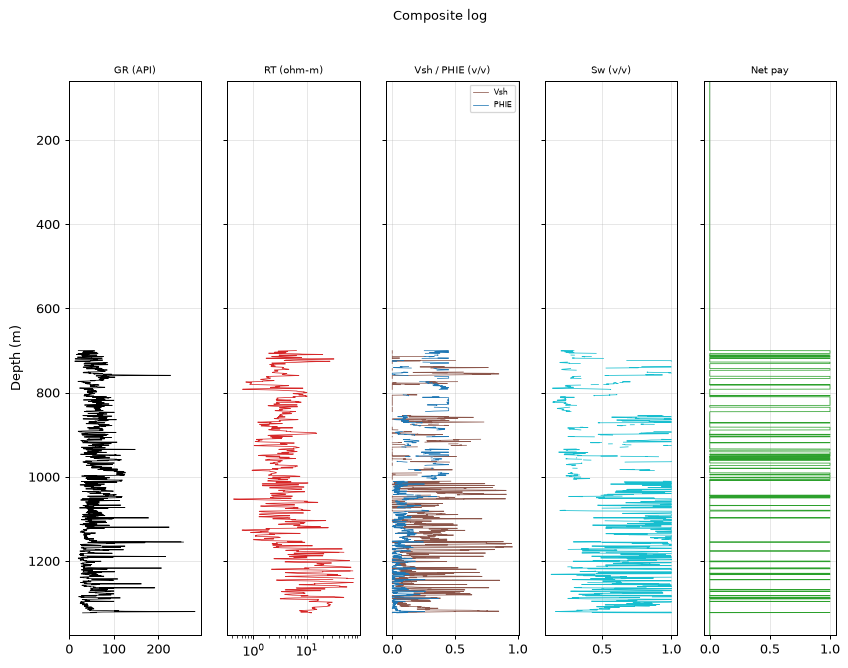

Composite log

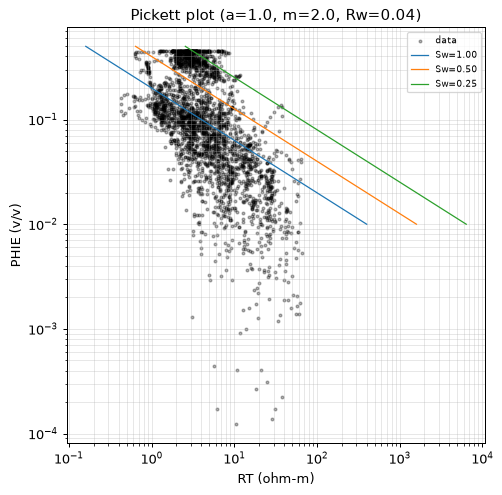

Pickett plot

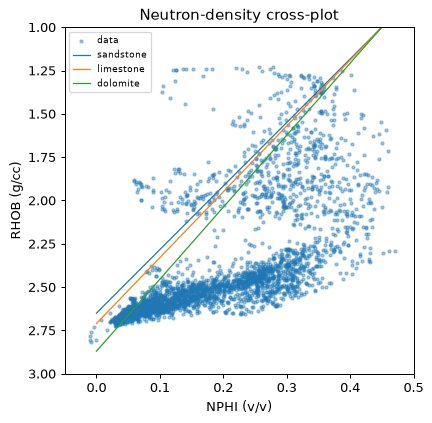

Neutron-density crossplot

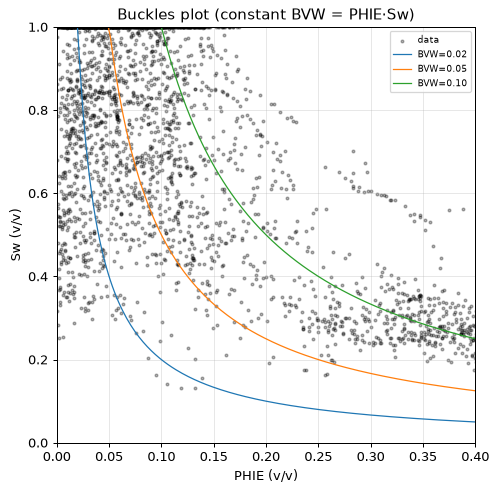

Buckles plot

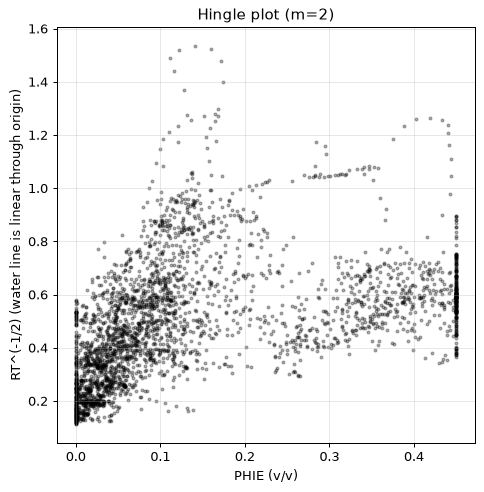

Hingle plot

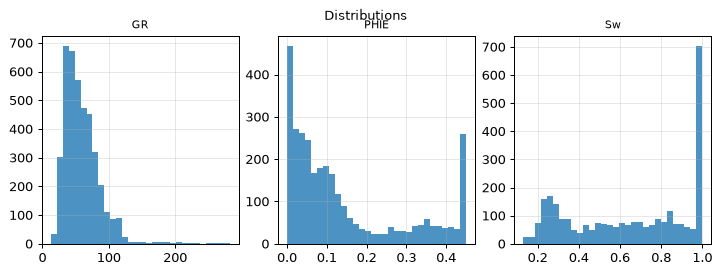

Distributions
Sensitivity tornado

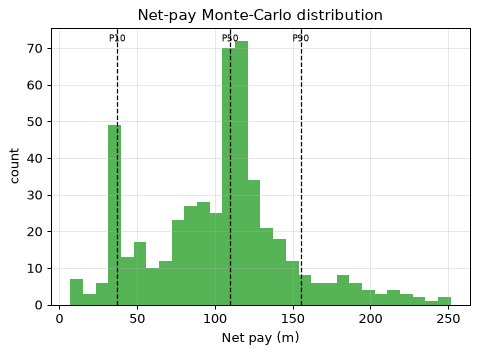

Net-pay Monte-Carlo distribution
14. Shale volume (Vsh)
Mean Vsh by method (selection is the agent's; the LLM authors no number):
| Method | Mean Vsh | Selected |
|---|---|---|
| vsh_larionov_old | 0.263 | |
| vsh_larionov_tertiary | 0.189 | |
| vsh_linear | 0.380 | |
| vsh_clavier | 0.248 | |
| vsh_steiber | 0.212 | |
| vsh_neutron_density | 0.204 | ✓ |
| vsh_multimineral | 0.187 |
15. Porosity
Mean porosity by method (effective where shale-corrected; the LLM authors no number):
| Method | Mean porosity | Selected |
|---|---|---|
| phie_density_neutron | 0.148 | ✓ |
| phi_density | 0.179 | |
| phi_neutron | 0.195 |
Service-company porosity curves (cross-check evidence, full-column means): phid_svc: 0.303, nphi_dol: 0.210, nphi_ss: 0.301. Matrix assumptions differ per curve; agreement/disagreement is the analyst's reading.
16. Water saturation
Mean Sw (Simandoux 1963 (shaly sand)) = 0.649 (a=1.00, m=2.00, n=2.00, Rw=0.0314 ohm-m). Electrical parameters are engine-sourced; alternative Sw models are optional sections.
Mean Sw by method (engine-computed comparison; the LLM authors no number):
| Method | Mean Sw | Selected |
|---|---|---|
| sw_archie | 0.750 | |
| sw_simandoux | 0.649 | ✓ |
| sw_indonesia | 0.655 |
17. Zonation (net-pay intervals)
Raw net-pay runs merged into 46 intervals (gap tolerance 1.5 m); showing the 15 thickest, depth-ordered. Full set traces in the ledger.
| Interval | Top (m) | Base (m) | Net pay (m) | Avg PHIE | Avg Sw | Avg Vsh |
|---|---|---|---|---|---|---|
| Z1 | 700.3 | 706.7 | 6.6 | 0.381 | 0.268 | 0.000 |
| Z2 | 727.4 | 730.9 | 3.7 | 0.399 | 0.243 | 0.000 |
| Z3 | 742.8 | 746.6 | 4.0 | 0.388 | 0.243 | 0.000 |
| Z4 | 761.1 | 766.3 | 5.3 | 0.437 | 0.292 | 0.000 |
| Z5 | 780.7 | 791.6 | 10.2 | 0.401 | 0.278 | 0.001 |
| Z6 | 809.9 | 830.1 | 20.4 | 0.424 | 0.221 | 0.000 |
| Z7 | 834.5 | 845.1 | 10.7 | 0.419 | 0.224 | 0.000 |
| Z8 | 881.9 | 888.5 | 6.7 | 0.361 | 0.303 | 0.002 |
| Z9 | 933.8 | 936.5 | 2.9 | 0.346 | 0.267 | 0.000 |
| Z10 | 940.6 | 950.8 | 8.5 | 0.349 | 0.309 | 0.000 |
| Z11 | 967.1 | 972.8 | 5.8 | 0.361 | 0.297 | 0.000 |
| Z12 | 990.6 | 993.6 | 3.2 | 0.419 | 0.278 | 0.016 |
| Z13 | 995.5 | 1000.5 | 5.2 | 0.314 | 0.289 | 0.007 |
| Z14 | 1002.5 | 1005.7 | 3.4 | 0.330 | 0.332 | 0.000 |
| Z15 | 1286.9 | 1289.9 | 2.7 | 0.253 | 0.318 | 0.201 |
18. Results
| Quantity | Value |
|---|---|
| Gross interval | 623.0 m |
| Net pay (P10/P50/P90) | 37.3 / 109.9 / 155.3 m |
| Net-to-gross | 0.193 |
| Avg PHIE (net pay) | 0.361 |
| Avg Sw (net pay) | 0.283 |
| Avg Vsh (net pay) | 0.022 |
19. Uncertainty and sensitivity
Monte Carlo, 500 realizations (seed 42). Net pay swing per parameter (one-at-a-time):
| Parameter | Net-pay swing (m) |
|---|---|
| Rw | 26.1 |
| m | 22.4 |
| a | 15.4 |
| n | 5.3 |
Dominant uncertainty: Rw (swing 26.1 m).
Multi-seed robustness: P50 stable (spread 2.1 m across 4 seeds).
Net pay is dominated by 'Rw', which is a regional DEFAULT (uncalibrated). This is the single largest uncertainty — the result is bracketed, not a confident point estimate.
20. Derived parameters
- Bulk-volume water (BVW = PHIE*Sw): mean 0.0689 v/v
- Porosity-thickness (Phi·H over net pay): 43.527 m
- Hydrocarbon pore thickness (HCPV = Σ PHIE·(1−Sw)·step): 31.729 m
- Buckles constant (BVW at P10 of net pay): 0.0681 → Swirr (mean) ≈ 0.189 over 791 pay samples
21. Permeability (uncalibrated)
- perm_timur: mean k = 670.12 mD
_Uncalibrated screening estimate (no core); Sw used as the Swirr proxy._
22. Parameters and provenance
| Parameter | Value | Unit | Provenance | Source |
|---|---|---|---|---|
| gr_min | 20.000 | API | default | — |
| gr_max | 120.000 | API | default | — |
| rho_ma | 2.710 | g/cc | default | Schlumberger 1989 |
| rho_fl | 1.000 | g/cc | default | — |
| phie_max | 0.450 | v/v | default | — |
| phi_sh_d | 0.100 | v/v | default | — |
| phi_sh_n | 0.350 | v/v | default | — |
| a | 1.000 | - | default | Winsauer et al. 1952 |
| m | 2.000 | - | default | Archie, G.E. 1942 |
| n | 2.000 | - | default | Archie, G.E. 1942 |
| Rw | 0.040 | ohm-m | default | Kansas Geological Survey 2000 |
| rt_hydrocarbon_floor | 5.000 | ohm-m | default | — |
| vsh_cutoff | 0.350 | v/v | default | — |
| phie_cutoff | 0.100 | v/v | default | — |
| sw_cutoff | 0.500 | v/v | default | — |
| bit_size_config | 7.875 | in | default | — |
| qc_abort_threshold | 0.800 | - | default | — |
| circuit_breaker_n | 3.000 | - | default | — |
The citations table (not RAG) gives each cited parameter exactly one frozen source. Parameters tagged
defaultare regional/global — they drive the bracketed tier.
23. Petrophysical cutoffs
Boundary-inclusive criteria applied by the engine (netpay) to flag reservoir:
| Stage | Criterion | Cutoff | Provenance |
|---|---|---|---|
| Net sand | Vsh ≤ cutoff | 0.350 | default |
| Net reservoir | + PHIE ≥ cutoff | 0.100 | default |
| Net pay | + Sw ≤ cutoff | 0.500 | default |
Cutoff values are engine parameters (never LLM-authored); the dominant net-pay uncertainty is Rw — see Uncertainty for the swing.
24. Data quality and validator objections
Curve provenance (canonical ← raw mnemonic): DCAL←DCAL, DRHO←RHOC, GR←GR, NPHI←CNLS, NPHI_DOL←CNDL, NPHI_SS←CNSS, PHID_SVC←DPOR, RHOB←RHOB, RMED←RILM, RT←RILD, RXO←RLL3, SP←SP.
QC edits applied before compute — degradation: 2, hard_range_mask: 4, range_warn: 2, spike_removal: 134, unit_conversion: 1.
| Validator | Type | Detail |
|---|---|---|
| vsh_phie_anticorrelation | support | Vsh-PHIE Pearson 0.91 > 0.3 (dirty rock + high porosity) |
| rt_sw_consistency | mechanical | 621 depths with Sw<0.4 but RT<5.0 ohm-m |
| net_pay_plausibility | irreducible | net-pay avg PHIE 0.36 > 0.25 — implausibly high for carbonate |
25. Methodology (decision graph)
flowchart TD
dec_1["decision: step: depth_quality"]
act_1["tool_call: depth_quality"]
dec_2["decision: step: crossplot"]
act_2["tool_call: crossplot"]
dec_3["decision: wasted no-op: depth_quality"]
dec_4["decision: DETERMINISTIC DEFAULT (model empty): compute_vsh"]
act_3["tool_call: compute_vsh"]
dec_5["decision: step: compare_methods"]
act_4["tool_call: compare_methods"]
dec_6["decision: step: compute_phie"]
act_5["tool_call: compute_phie"]
dec_7["decision: step: compare_methods"]
act_6["tool_call: compare_methods"]
dec_8["decision: step: compute_sw"]
act_7["tool_call: compute_sw"]
dec_9["decision: step: interval_stats"]
act_8["tool_call: interval_stats"]
dec_10["decision: step: rw_evidence"]
act_9["tool_call: rw_evidence"]
dec_11["decision: step: compare_methods"]
act_10["tool_call: compare_methods"]
dec_12["decision: step: set_zone_of_interest"]
act_11["tool_call: set_zone_of_interest"]
dec_13["decision: step: validate_choice"]
act_12["tool_call: validate_choice"]
dec_14["decision: step: compute_sw"]
act_13["tool_call: compute_sw"]
dec_15["decision: step: compute_vsh"]
act_14["tool_call: compute_vsh"]
dec_16["decision: step: compute_phie"]
act_15["tool_call: compute_phie"]
dec_17["decision: step: compute_sw"]
act_16["tool_call: compute_sw"]
dec_18["decision: step: apply_cutoffs"]
act_17["tool_call: apply_cutoffs"]
dec_19["decision: wasted no-op: compute_phie"]
dec_20["decision: step: validate_choice"]
act_18["tool_call: validate_choice"]
dec_21["decision: step: run_uncertainty"]
act_19["tool_call: run_uncertainty"]
dec_22["decision: step: compute_sw"]
act_20["tool_call: compute_sw"]
dec_23["decision: step: apply_cutoffs"]
act_21["tool_call: apply_cutoffs"]
dec_24["decision: step: run_uncertainty"]
act_22["tool_call: run_uncertainty"]
dec_25["decision: wasted no-op: compute_sw"]
dec_26["decision: wasted no-op: compute_sw"]
dec_27["decision: step: lithology"]
act_23["tool_call: lithology"]
dec_28["decision: step: derived_parameters"]
act_24["tool_call: derived_parameters"]
dec_29["decision: step: permeability"]
act_25["tool_call: permeability"]
dec_30["decision: wasted no-op: compute_sw"]
dec_31["decision: wasted no-op: compute_sw"]
dec_32["decision: step: objection_profile"]
act_26["tool_call: objection_profile"]26. Data gaps for calibration
This is a LAS-only study. Data that would calibrate the interpretation is absent:
- Core (routine + SCAL): would anchor PHIE and Archie m, n, a.
- Pressure tests (RFT/MDT): would give true fluid contacts and gradients (log-based).
- Production/flow data: would test the net-pay flag against deliverability.
- Dominant net-pay uncertainty driver (from the sensitivity): Rw (calibrated by produced-water salinity or a Pickett/SP Rw calibration).
- Standard curves absent: DT, PEF, CALI.
27. Limitations
- LAS-only study: no core calibration, no pressure tests (no true fluid contacts), no production, no mud logs, no formation tops (zonation computed by depth).
- Standard curves absent in this well: DT, PEF, CALI.
- Results are uncalibrated; accuracy depends on data not provided.
28. Conclusions
The interpretation is BRACKETED throughout. All key parameters — Vsh, PHIE, Sw, and net pay — carry dominant uncertainty from uncalibrated regional defaults, principally Rw. The mechanical objection on PHIE (0.361 > 0.25 for carbonate) and the non-converged validation loop mean no number in this report should be used for reserves booking or field development decisions without independent calibration (core, production logs, or offset well control). The pay range 37.3–155.3 m (P10–P90) represents a scenario envelope only. Further work should prioritize acquiring a reliable Rw measurement and core-calibrated porosity endpoints before any re-evaluation.
Appendix A — Ledger excerpt (traceability)
{
"net_pay_total_m": 120.54840000000007,
"net_pay_p10_p50_p90": [
37.307520000000025,
109.88040000000007,
155.2956000000001
],
"driving_params": {
"a": 1.0,
"m": 2.0,
"n": 2.0,
"Rw": 0.04
},
"claim_verifier": {
"result": "PASS",
"flags": [],
"tone_flags": []
}
}Appendix B — Completeness gate
| Item | Present |
|---|---|
| QC edits recorded before compute | ✓ |
| Every number ledger-traced | ✓ |
| Confidence tier on the run | ✓ |
| Parameter citations frozen | ✓ |
| Validator objections listed, not hidden | ✓ |
| Uncertainty propagated (Monte Carlo) | ✓ |
| Claim verifier run on prose | ✓ |
